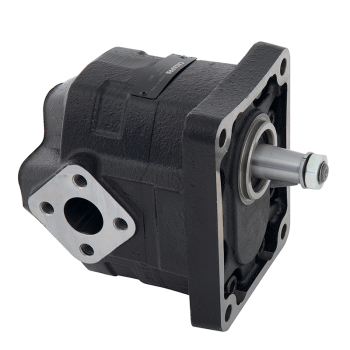

Kappa KP Group 3 Gear Pump

Kappa KP Group 3 Gear Pump

Gear pumps and motors made of cast iron in two pieces. KAPPA is available with mountig flanges and side or rear ports according to SAE and European standard. The rigidity of assembly ensure reliability and high volumetric efficiency also at high operating pressures.
Group 3
Displacements: from 26.7 cm³/rev to 73.82 cm³/rev.
Continuous pressure 180 to 280 bar - speed 2500 to 3000rpm
Max Peak pressure 310 bar.

Click here to download technical catalogue


Code Description cc/rev rotation shaft ports Price
03569800 Casappa KP30.27D0-83E3-LED/EB-N 26.7 CW 1:8 Taper ED/EB £716.27 (exc VAT) Each
03570000 Casappa KP30.34D0-83E3-LED/EB-N 34.56 CW 1:8 Taper ED/EB £689.51 (exc VAT) Each
03570300 Casappa KP30.38D0-83E3-LED/EB-N 39.27 CW 1:8 Taper ED/EB £721.64 (exc VAT) Each
03570500 Casappa KP30.43D0-83E3-LED/EB-N 43.98 CW 1:8 Taper ED/EB £600.00 (exc VAT) Each
03570700 Casappa KP30.51D0-83E3-LED/EB-N 51.83 CW 1:8 Taper ED/EB £763.25 (exc VAT) Each
03570900 Casappa KP30.61D0-83E3-LED/EB-N 61.26 CW 1:8 Taper ED/EB £804.11 (exc VAT) Each
03571020 Casappa KP30.73D0-83E3-LEF/ED-N 73.82 CW 1:8 Taper EF/ED £875.33 (exc VAT) Each
03571220 Casappa KP30.38D0-83E3-LGF/GF-N 39.27 CW 1:8 Taper 1"bsp £927.36 (exc VAT) Each
03571240 Casappa KP30.43D0-83E3-LGF/GF-N 43.98 CW 1:8 Taper 1"bsp £722.10 (exc VAT) Each
03571260 Casappa KP30.51D0-83E3-LGF/GF-N 51.83 CW 1:8 Taper 1"bsp £763.16 (exc VAT) Each
03571262 Casappa KP30.61D0-83E3-LGG/GF-N 61.26 CW 1:8 Taper 1"bsp £834.75 (exc VAT) Each
